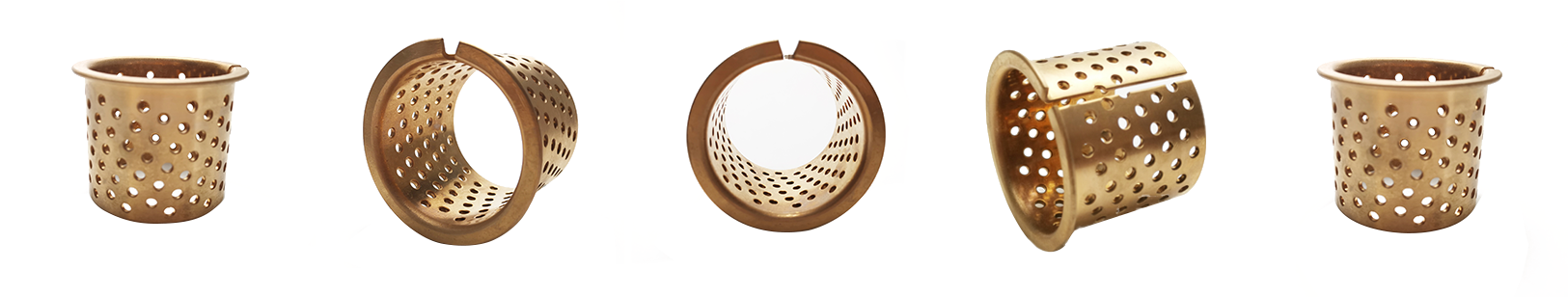

Our Lagerbuchsen Bronze Sleeve Bushings, Flange Glidlager, are custom-made to fit your specific requirements. These bushings are crafted from high-quality bronze material, renowned for its excellent wear resistance and durability.

The bronze sleeves are designed with flange glidlager, which provides superior load-bearing capacity and stability. This unique design ensures smooth and reliable operation, even under high loads and speeds.

We offer a wide range of sizes and specifications to cater to various industrial applications. Wh you need bushings for heavy machinery, automotive components, or other equipment, we can customize them according to your needs.

Our team of experts will work closely with you to understand your specific requirements and provide the best possible solution. We guarantee precision manufacturing and attention to detail, ensuring that your Lagerbuchsen Bronze Sleeve Bushings meet or exceed your expectations.

So, if you're looking for high-quality, custom-made bronze sleeve bushings, look no further than our Lagerbuchsen Bronze Sleeve Bushings, Flange Glidlager. Contact us today to discuss your requirements and get a quote.

Wrapped Bronze Bearing Supplier, Flange Bronze Bushing

Drill Rigs Bronze Bushing for Sale | Drilling Rigs Bronze Parts Flange Size | Bushings Source

Bronze mesh material, Drill Rigs Bronze Bushing, self-lubricating sleeve bearing, gleitlager, Buchen made to order, cusn8 bronze material, flange size


Discovery your customer self-lubricating sleeve bearing design type. We guarantee quality lagerbuchsen at a competitive price, delivered on a timely basis.
As well as to provide you with samples of our lagerbuchsen for evaluation.FB -090F / 092F Electric Motor Bronze self-lubricating sleeve bearing 4040mm Size Corrosion Resistance
FB-090F/ 092F Bronze Bearings 4040 Flanged self-lubricating sleeve bearing, Standard catalog size, special size, and designs can be produced at competitive prices.
self-lubricating sleeve bearing FB092F 40*44*40/55

Choose from our selection of press-fit drill self-lubricating sleeve bearing, removable bronze drill bushings, metric split type press-fit drill bushings, and more. Standard Bushings Size In stock and ready to ship, customized self-lubricating sleeve bearing made to order.

Chemical Composition

What is FB090 wrapped bronze bearing?

FB090 Wrapped Bronze bearings are made completely of bronze. They are particularly suitable for applications, which must be re-lubricated due to dirty environments.
The self-lubricating sleeve bearing surface is provided with lubrication pockets, which contribute to the enhanced lubrication performance.
This self-lubricating sleeve bearing is produced in accordance with ISO 3547 and DIN 1494.

Where to use FB090 wrapped bronze bearing?

These self-lubricating sleeve bearing are suitable for both radial and axial movements.
The self-lubricating sleeve bearing are well suited for machinery in dirty environments where shock loads and/or vibrations occur.
Examples of applications are:
Agricultural machinery
Hoisting equipment
Construction machinery
Forest machinery

Why choose wrapped bronze bearing?

Insensitive to dirty environments

Resistant to shock loads and vibrations at slow speeds

Good resistance to corrosive conditions

Materials

Support material CuSn8P (DIN 17662) alternative CuSn6P available

• Specific load capacity static≤ 120 [N/mm2]
• Specific load capacity dynamic≤ 40 [N/mm2]
• self-lubricating sleeve bearing speed≤ 2.5 [m/s] depending on lubrication
• Friction value0.05 [µ] to 0.12 [µ]
• Temperature strain- 40 [°C] to + 250 [°C]
• Max. PV-value2.8 [N/mm² x m/s]

Self-lubricating sleeve bearing contact surface design
Bearing Assembly
