The LG-2 Bronze Bush is a high-quality, precision-machined component made from bronze alloy. Bronze is a metal alloy that typically consists of copper and other metals, such as tin, aluminum, or silicon, and is known for its excellent corrosion resistance, wear resistance, and machinability.
The LG-2 Bronze Bush is specifically designed for applications where high precision and durability are required. Its bronze material ensures that it can withstand repeated use and friction while maintaining tight tolerances. The bush is often used in bearings, bushings, and other mechanical components to provide a smooth, low-friction surface for rotating or sliding parts.
The LG-2 Bronze Bush can be customized to meet specific requirements, including different dimensions, tolerances, and surface finishes. It is also available in various bronze alloys to suit different application needs, such as those requiring enhanced corrosion resistance or higher strength.
In summary, the LG-2 Bronze Bush is a reliable and durable component that is widely used in various industrial and mechanical applications where precision and durability are crucial.
Bronze Bushing LG2. Available in continuous cast bronze bearings and flange size bronze bush, see stocked sizes. Related Specifications.
LG-2 bronze bush Bronze Bushing
LG2 has Excellent machining properties. Medium strength, good pressure toughness and is not subject to dezincification and has reasonable corrosion resistance to sea water and brine, making it suitable for pump and valve components. LG2 is suitable for bearings having light loads and low to medium speeds with adequate lubrication and for very light duty gears when loading is negligible.
| Typical Composition | | |
| | Min. % | Max. % |
| Copper | 84 | 86 |
| Tin | 4 | 6 |
| Zinc | 4 | 6 |
| Lead | 4 | 6 |
| Phosphorous | | 0.05 |
| Aluminium | | 0.005 |
LG-2 bronze bush bronze bushing is based on the copper alloy. It offers technically and economically favorable bearings solutions.
It is of high load capability, low weight, and good corrosion resistance.
LG-2 bronze bush bronze bushing can offer different types of bronze copper alloys according to the required lifetime, service, etc. The tolerance is much tighter than wrapped bronze bushes.
LG2 Mechanical Properties
| Manufacturing Process | Tensile Strength MPa | Yield Strength 0.2% MPa | Elongation % | Hardness range HB |
| Continuous Cast | 270 | 100 | 13 | 75 |
| Centrifugal Cast | 220 | 110 | 8 | 80 |
This kind of products are widely used in machine-tool, agricultural machinery, crane electromotor, spring pin, steering shaft and transmission, etc. We can use different copper alloy material as per customer's requirements.
Details
❤ The LG-2 bronze bush bronze bushing is Self-lubricating, easy to install and easy to use .
❤ High-quality LG-2 bronze bush material, durable and long time for your replacement tool.
❤ LG-2 bronze bush bronze bushing for slide block 3D printer accessories.
❤ Suitable for Ultimaker 3D Printer slide block.
❤ Suitable size for your using.
Availability
Bearing forms made to order: cylindrical bushes, flanged bushes, thrust washers, sliding plates, half-bearings, axial and radial segment rings, self-aligning spherical bearings, spherical plain bearings, special shapes, customized bearing designs
Operating Performance
| Dry | Good |
| Oil-lubricated | Good |
| Grease lubricated | Good |
| Water lubricated | Depending on copper alloy |
| Process fluid lubricated | Depending on Fluid and copper alloy |
Product Description
| Product Name | LG-2 bronze bush bronze bushing |
| Material | LG-2 bronze bush |
| Surface treatment | Anodized different color,Mini polishing&brushing,Electronplating(zinc plated,nickel plated,chrome plated),Power coating&PVD coating,Laser marking&Silk screen,Printing,Welding,Harden etc. |
| Tolerance | ±0.01mm |
| process | CNC machining,Auto lathing/turning,Milling,Grindin, Tapping Drilling,Bending,Casting,Laser cutting |
| Certificate | ISO9001:2008, |
| Delivery Time | 10-12days |
| MOQ | 1000 |
Technical Data
| Technical Data |
| Material | Brass | Bronze | Bronze | Bronze | Bronze |
| CuZn25Al5 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | CuSn10Pb10 |
| Density | 8 | 8.9 | 7.8 | 8.9 | 8.9 |
| Yield point/mm2 | ＞450 | ＞90 | ＞260 | ＞150 | ＞100 |
| Tensile strength N/mm2 | ＞750 | ＞200 | ＞600 | ＞260 | ＞210 |
| Elongation % | ＞12 | ＞15 | ＞10 | ＞8 | ＞8 |
| Hardness HB | ＞210 | ＞70 | ＞150 | ＞95 | ＞75 |
Features:
- Excellent heat dissipation
- Good corrosion resistance
- Fines surface finish
- Supreme tensile strength
- Abrasive resistant
- Wear-resistant
- High load-carrying capacity
- Self-lubricating properties
- Suitable for RPM applications
- Chemical resistance
- Long-lasting service life
Commonly used copper alloys are classified into brass, bronze, and copper bushings.
| QC System | 100% inspection before shipment. |
| Packaging | Standard package/ As per customized specifications |
| Delivery Date | 7-30 working days based on quantity |
| | 1)<USD1000.00 100%T/T deposit |
| 2)≥USD1000.00 30% T/T deposit, 70% balance before shipment; T/T, L/C&D/P is acceptable |
| | 1)≤100kg: express& air freight priority |
| 2) >100kg: sea freight priority |
| 3) As per customized specifications |
Product Tags:
|
|

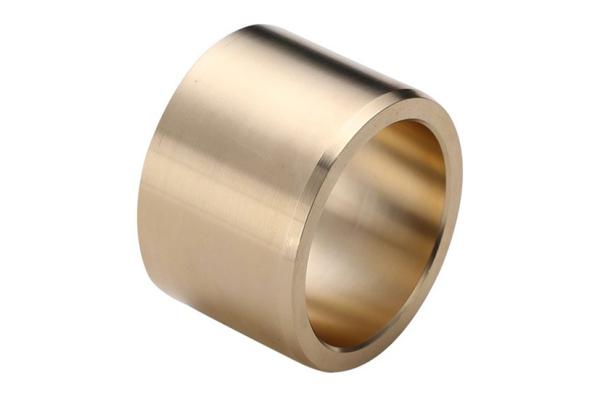

LG-2 Bronze Bush Images
|
