Flat Bronze Gleitlager Washer Gasket POM Coated Steel Composite For Heavy Industry

JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
Contact Now

Flat Bronze Gleitlager Washer Gasket POM Coated Steel Composite For Heavy Industry

  • 1
  • 2
  • 3

Brand Name : bronzelube.com

Model Number : Washer POM Lead Free

Certification : Plain Sleeve Bearings Standards met: RoHS

Place of Origin : gleitlagerbuchsen china

MOQ : Bronze Precision Wear Plates & Lubricating Parts made to order

Price : US$0.11 - US$21.11 / Pieces,NEGOTIABLE

Payment Terms : TT IN ADVANCE,L/C,Western Union

Supply Ability : bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Delivery Time : Shipped in 3-20 work days

Packaging Details : Standard package, Pallet or container, As per customized specifications

Meterial : Low-Carbon Steel + Porous Bronze + POM

Plating : Tin or copper

Types : FLANGE/SLEEVE/WASHER

Application : Heavy Industry, General Industry, Automotive Industry

Production Feature : gleitlager scheiben, Gleitlager, Anlaufscheiben und Bandstreifen

Parts : Bushings-thrust-washers-strips

CATEGORIES : Plain bearings

Get A Better Quote : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing

Gleitalger : A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Contact Now

Flat Bronze Gleitlager Washer Gasket with POM-Coated Steel Composite is specifically designed for heavy industry applications. This composite material combines the strength and durability of steel with the lubricity and wear resistance of POM (Polyoxymethylene) coating, making it ideal for harsh and demanding environments. The bronze Gleitlager washer gasket ensures smooth and reliable operation, reducing friction and wear while increasing the overall efficiency of the system. Its flat design allows for easy installation and replacement, further reducing maintenance costs and downtime.

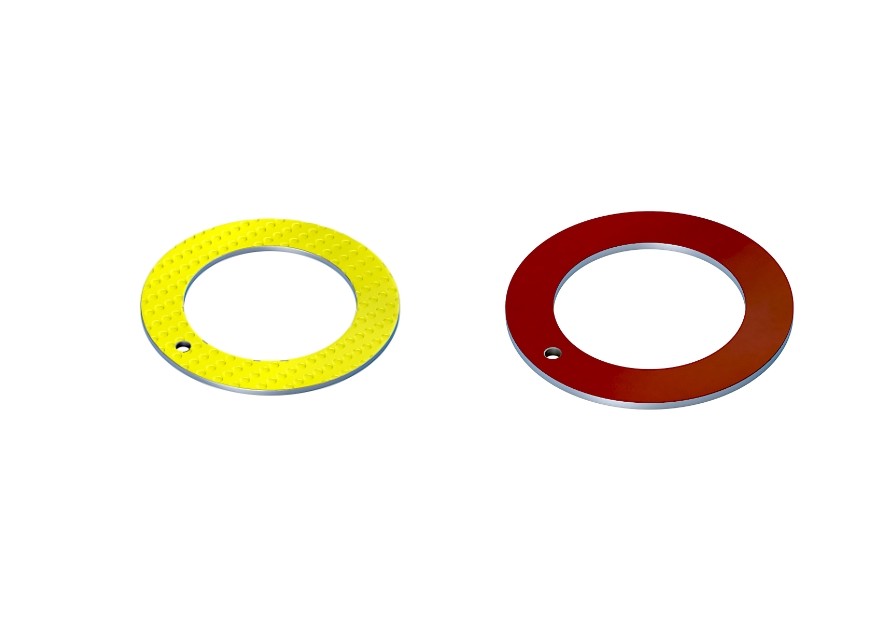

Dry sliding thrust washers with metric dimensions of triple-layer POM composite thrust washer material



Replacement for these common bearing part numbers:Metal-Polymer Bearings Bearing MW10DX.Gleitlager, Anlaufscheiben und Bandstreifen,Gleitlager buchsen & gleitlager scheiben POM/ Coated Steel Composite Flat Washer,Washer Bushing Oilless Self-Lubricating Bush Bronze/Steel+Bronze Powder+()+Polymer Plain Thin Flat Thrust Washer

DESCRIPTION

Buchse, Bundbuchsen, zylindrische Gleitlager

SIZE

Product Type:
Gleitlager POM Coated Steel Composite Flat Washer
Application :
The vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc
Material:
Steel +Bronze +POM
Max load capacity P:
Static load 140N/mm² / Dynamic load 70N/mm²
Max line speed V:
Grease lubrication 2.5m/s
PV value limit:
Grease lubrication 2.8N/mm²·m/s
Friction coef u:
0.06~0.12
Mating Axis:
Hardness >270HB / Roughness Ra=0.4~1.25
Working Temperature:
-40~+120℃
Thermal conductivity:
52W/(m·k)
Coefficient of linear expansion:
11×10-6/K
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.
Flat Bronze Gleitlager Washer Gasket POM Coated Steel Composite For Heavy Industry































AVAILABILITY

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers



Flat Bronze Gleitlager Washer Gasket POM Coated Steel Composite For Heavy Industry

METRIC SERIES | PRELUBRICATED THRUST WASHER
