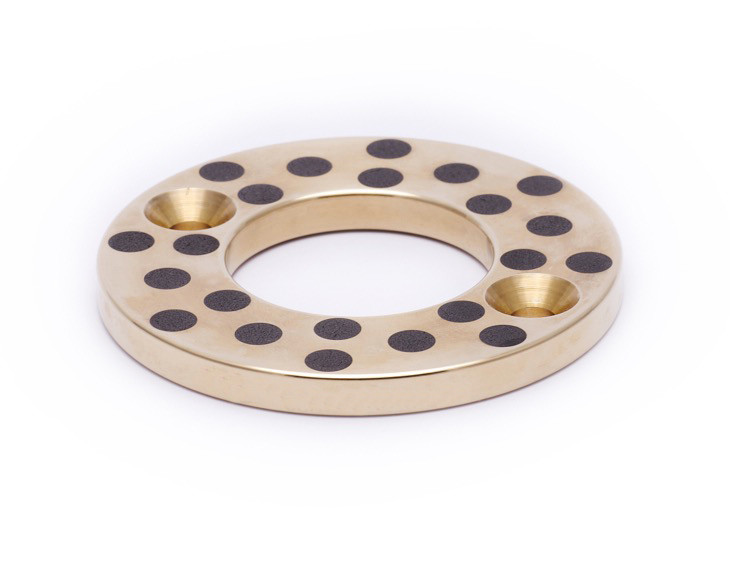

Bronze Oilless SPW Thrust Washer Equivalent Engineering Machinery

Name: Bronze Oilless SPW Thrust Washer Equivalent Engineering Machinery
Brand: viiplus.com
Price: 1 USD

Brand Name : viiplus.com

Model Number : Bronze Bearings

Certification : OILLESS BEARINGS

Place of Origin : oilless bushing

MOQ : 500 Piece/Pieces (Min. Order)

Price : Oilless Bushes Factory Price

Payment Terms : T/T PREPARD, T/T, L/C, D/A, D/P

Supply Ability : plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, PTFE Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing

Delivery Time : 2~4 Weeks

Packaging Details : STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE

Meterial : Oilless Bush

Type : Bushes， Bushes With Flange，

Application : Engineering machinery，mould bronze bushing

Metric size : High tensile with graphite

Equivalent : Oilless Bushings

Available : shoulder bronze bushing

Bearing Bushing Factory Price : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

Oilless Bearing Manufacturer : https://www.bronzelube.com/

Manufacturer : bucha de bronze grafitado

High Light : Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery

Oilless Bushes : Oilless Bush. Copper Alloy. Straight type. SOB. Material Base Copper alloy (SO-2). Solid lubricant

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Oilless Bush Supplier : www.VIIPLUS.com offers oilless bushings on their website [1]. You can visit their website to explore their product range and make inquiries.

Contact Now

The Bronze Oilless SPW Thrust Washer is a high-performance engineering component that offers a reliable and efficient solution for thrust applications in various machinery. As an equivalent to traditional oil-lubricated thrust washers, it eliminates the need for regular lubrication, reducing maintenance costs and downtime.
Constructed from high-quality bronze material, the thrust washer exhibits excellent wear resistance and durability. Its oil-free design ensures smooth and reliable operation, even under high loads and extreme conditions. This feature makes it suitable for use in a wide range of engineering machinery, including construction equipment, mining machinery, and industrial production lines.
The Bronze Oilless SPW Thrust Washer is precision-manufactured to ensure accurate fit and optimal performance. It can be easily integrated into existing machinery or used as a replacement part for worn-out or damaged thrust washers. Its compact design and durability contribute to the overall efficiency and reliability of the engineering machinery.
Wh you're looking to upgrade your existing equipment or seeking a cost-effective solution for thrust applications, the Bronze Oilless SPW Thrust Washer is an excellent choice. Its equivalent performance to oil-lubricated washers, combined with the convenience of oil-free operation, makes it a valuable addition to your engineering machinery. Contact us today to learn more about this innovative component and how it can enhance the performance of your machinery.

Bronze Oilless Bush SPW Thrust Washer Equivalent

Solid Lubricant Inlaid Thrust Washer, Bronze Bushing 500SP1-SL1 Thrust Washer SPW Size, Oilless Bronze bushing with graphite

Oilless Bushings Equivalent SOB bronze bearings, SPF Flange Bushings

500SP1-SL1 Thrust Washer	I.D.: Φd	O.D.: ΦD	Thickness: T	Position of Mounting hole: P.C.D	Number of Hole	Countersunk Screw
SPW-0603	6.2	25	3	15	2	M3
SPW-0803	8.2	28	3	18	2	M3
SPW-1003	10.2	30	3	20	2	M3
SPW-1203	12.2	40	3	28	2	M3
SPW-1203N	12.2	40	3	-	-	-
SPW-1303	13.2	40	3	28	2	M3
SPW-1403	14.2	40	3	28	2	M3
SPW-1503	15.2	50	3	35	2	M3
SPW-1603	16.2	50	3	35	2	M3
SPW-1603N	16.2	50	3	-	-	-
SPW-1803	18.2	50	3	35	2	M3
SPW-2005	20.2	50	5	35	2	M5
SPW-2505	25.2	55	5	40	2	M5
SPW-2505N	25.2	55	5	-	-	-
SPW-3005	30.2	60	5	45	2	M5
SPW-3005N	30.2	60	5	-	-	-
SPW-3505	35.2	70	5	50	2	M5
SPW-4007	40.2	80	7	60	2	M6
SPW-4507	45.2	90	7	70	2	M6
SPW-5008	50.3	100	8	75	4	M6
SPW-5508	55.3	110	8	85	4	M6
SPW-6008	60.3	120	8	90	4	M8
SPW-6508	65.3	125	8	95	4	M8
SPW-7010	70.3	130	10	100	4	M8
SPW-7510	75.3	140	10	110	4	M8
SPW-8010	80.3	150	10	120	4	M8
SPW-9010	90.5	170	10	140	4	M10
SPW-10010	100.5	190	10	160	4	M10
SPW-12010	120.5	200	10	175	4	M10

Bronze Oilless SPW Thrust Washer Equivalent Engineering Machinery

Bronze with lubricating pins - maintenance-free.Get Best Deals For Sleeve Bronze Bushings graphite bronze bearings Recommendations For You

Looking for Sleeve Bushings? Find the Best Price Quote! | MADE TO ORDER

The solid lubricants are embedded in a macroscopic distribution, which guarantees a permanent selflubricating effect without any additional lubricants.

Specifications Dimensions

Characteristics

– Suitable for high loads
– Multiple areas of us (universal bearing)
– Long life
– Wide temperature range

Areas of use

Forest machinery, pump housing parts, cylinder bearings, shipping & container industry etc.
Shapes & forms
Cylindrical bearings, flange bearing

Bronze Bushing Technology
Type	JDB-1	JDB-2	JDB-3	JDB-4	JDB-5
Base material	CuZn24Al6	CuSn6Zn6Pb3	CuSn6Zn6Pb3	HT-250	CuCr15
Base Hardness	Hb230	HB 90	HB 80	HB 210	HB 60
Base Hardness	(Hb270)	HB 90	HB 80	HB 210	HB 60
Friction coef(u)	<0.16	<0.15s	<0.14	<0.17	<0.17
Temperature limit	300℃	350℃	300℃	400℃	350℃
Dynamic Load Limit	100 N/mm2	60 N/mm2	70 N/mm2	60 N/mm2	250 N/mm2
Load LImit Under 1m/min	25 N/mm2	15 N/mm2	20 N/mm2	15 N/mm2	70 N/mm2
Speed limit	0.40 m/s 5 m/s	2 m/s	2 m/s	0.5 m/s	0.1 m/s
PV Limt	3.8 N/mm2·m/s	0.5 N/mm2·m/s	0.6 N/mm2·m/s	0.8 N/mm2·m/s	2.5 N/mm2·m/s
bronze bushingWear Performance
Load Applied		62N/mm2		24.5N/mm2		14.7N/mm2
Item		Wear Depth	Time	Wear Depth	Time	Wear Depth	Time
Type	Lubrication	(mm)	(hrs)	(mm)	(hrs)	(mm)	(hrs)
CuSn6Zn6Sn3	Oil	0.098	10	0.125	100	0.1	100
JDB-1	dry friction	0.075	100	0.015	100	0.012	100
JDB-2	dry friction	0.025	30	0.065	100	0.025	100
JDB-3	dry friction	0.03	30	0.12	100	0.015	100
JDB-4	dry friction	0.03	10	0.25	20	0.011	100
JDB-5	dry friction	0.022	100	.0.13	100	0.01	100

Bronze Oilless SPW Thrust Washer Equivalent Engineering Machinery
